1.1kw 4 pole B34 80 HO Frame

Aluminium Three Phase cage electric motors according to IEN/DIN-VDE0530.
Multi mount design with removable feet.

AluminiumThree Phase cage electric motors according to IEN/DIN-VDE0530.
Multi mount design with removable feet.

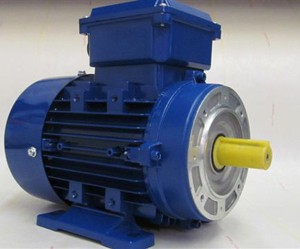

1.1 kw 4 Pole (1500rpm) 80 Frame B34 Foot and Face Mounted Aluminium Three Phase Electric Motor

• Voltage 220-240/380-420 50 Hz
• Voltage 220-240/440-480 60 Hz
• For 60 Hz motors the speed and Kw increases by approximately 20%
• Insulation Class F and IP55 Protection.
• A=125mm
• B=100mm
• C=50mm
• D=19mm Diameter
• E=40mm Long
• H=80mm
• M=100mm PCD of Holes
• N=80mm Spigot
• P=120mm Outer Diameter
• S=M6 Thread (4 Holes)

1.1kw 4 pole (1500 rpm) 80 Frame B34 Foot and Face Mounted High output Electric Motor.
