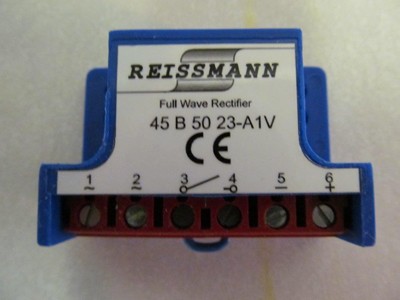

Full Wave Brake Rectifier

More Views

Full Wave Brake Rectifier
Input Voltage
V in: 42-500 V ac

Output Voltage
0.89 x Input Voltage

Example
415V ac in 370 V dc out
240V ac in 214 V dc out

Availability: In stock

FWBRECT
Excl. VAT: £25.00 Incl. VAT: £30.00
Product Description

Details

Electric Motor Brake Rectifiers


Description


The type 25 Brake Rectifier is used to develop a DC voltage to operate DC disc brakes on electric motors where standard release reaction times of the brake are required.


Applications


The type 25 Brake Rectifier is used to stop electrical machines quickly to avoid potentially dangerous situations. They are generally used on the following equipment.


Lifts – Cranes – Conveyors – Saws – Machine tools – Drills


Advantages


• Improved Product reliability
• Compact Housing allowing to be mounted inside the motor terminal housing
• Compact free switching – quick release of brake
• Minimises wear of the electromagnetic brake
• 50% energy saving with optimised brake release performance
• Elimination of AC noise from the brake coil winding

Input Voltage
V in: 42-500 V ac
Output Voltage
0.89 x Input Voltage

Max Current @25 deg c = 2.3 amps
Example
415V ac in 370 V dc out
240V ac in 214 V dc out
